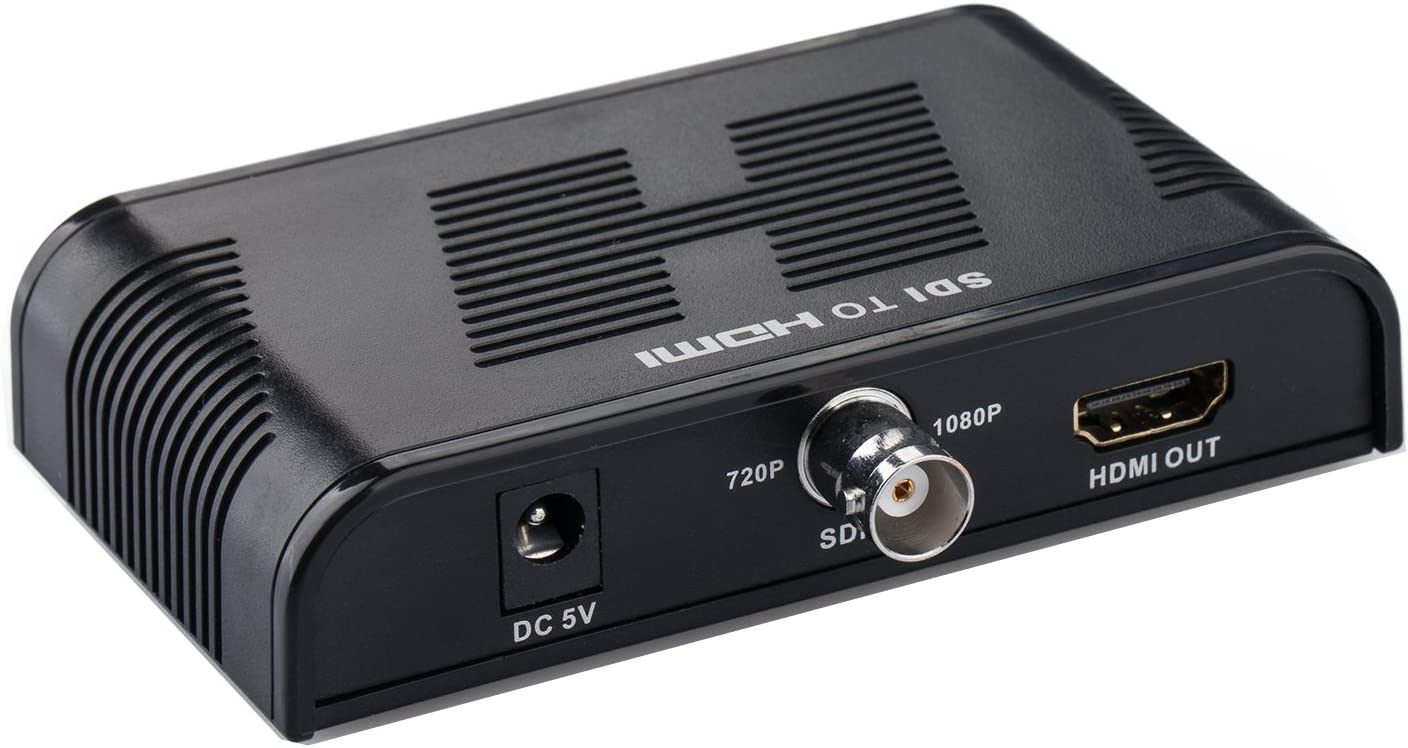

Tolako SDI to HDMI Adapter Converter 1080p for Driving HDMI Monitors Home Theater - Supports HD-SDI, SD-SDI and 3G-SDI Signals

• Converts any SDI input to HDMI video
• Supports SDI, HD-SDI, 3G-SDI with auto detection
• Does not Support Audio Output
• Compact size and easy to use. Just plug and play.
•  worldwide used in HDTVs and HD video projectors as broadcast video monitors

The SDI to HDMI Converter conveniently converts audio and video from SDI to HDMI. Now you can use big-screen HDTVs and HD video projectors as broadcast video monitors. Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. It's never been easier to connect the huge range of HDMI displays to your SDI-based equipment. Broadcast, post-production, and professional A/V studios all use SDI equipment and cabling extensively. In such an environment it's essential to maintain the highest possible video and audio quality when converting from SDI to HDMI. The SDI to HDMI Converter has been made using the best components and connectors, ensuring that you keep the highest possible quality audio and video.

Specifications:

Power Supply: DC 5V/1A
SDI format:SD-SDI HD-SDI 3G-SDI
Impedance:75Ω
SDI input resolutions:720P/50Hz 720/60Hz
1080i/50Hz 1080i/60Hz
1080p/24/25/30/50/60Hz
Recommended resolutions:720P@50Hz/60Hz or  1080P@50Hz/60Hz
HDMI output resolutions:720P/50Hz 720P/60Hz  1080i/50Hz 1080i/60Hz  1080P/24/25/30/50/60Hz
Dimensions:104x59x22mm(LxWSxHmm)
Weight:72g
Working Temperature:0℃~50℃


Installation Guide

1. Connect the SDI cable from the SDI source device to the converter
2. Connect HDMI cable from converter to HDTV/SDTV
3. The converter starts to work after all the devices are well connected


Package includes  - 1 x SDI to HDMI Converter
- 1 x DC 5V/1A Power Adapter
- 1 x User Manual
